SUBROUTINE CHECKBOX2
*Display a simple form with one group of checkboxes,
*each box with its own unique name

*Include the RealWeb definitions

     INCLUDE #RW.INCLUDE.DEFS FROM /SYSFILES/REALWEB,BP

* Get the URL of the Reality item server

     STYLESHEET = ""
CALL RW_GET_PARAM("__isurl", STYLESHEET)
* Specify the location of the stylesheet

     STYLESHEET = STYLESHEET : "/REALWEB-ITEMS/jstyles.css"

* Start the HTML page
* Display the text 'Form with Checkboxes' in the browser's title bar
* Use the styles stylesheet
CALL RW_START_HTML_PAGE("Form with Checkboxes", "", STYLESHEET, "", "")

*Start the HTML form, specifying that the subroutine RESPONSE2 should be run when the submit button is clicked
CALL RW_START_HTML_FORM("RESPONSE2","FORM6","")

CALL RW_PUT("Please enter your surname and membership number in the boxes")
CALL RW_NEWLINE

*Set up LEG_CLASS to specify format of legend

     LEG_CLASS="legend"

     LEG_CLASS<2>="right"

*Start the group of fields
CALL RW_START_FIELDSET("")

     BUF="Member Details"
CALL RWS_LEGEND(BUF,LEG_CLASS)
CALL RW_PUT(BUF)
CALL RW_PUT("Surname ")
CALL RW_EDIT_BOX("NAME",30,"")
CALL RW_NEWLINE
CALL RW_PUT("Membership Number:")
CALL RW_EDIT_BOX("NAME",9,"")
CALL RW_NEWLINES(2)
*Complete the group
CALL RW_END_FIELDSET

CALL RW_NEWLINES(2)
CALL RW_PUT("Now check which options you require")
CALL RW_NEWLINE

*Create the checkboxes
CALL RW_CHECKBOX("edchoice","Yes",0,0,"")
CALL RW_PUT("Order the Editor's Choice")
CALL RW_NEWLINE
CALL RW_CHECKBOX("events","Yes",0,0,"")
CALL RW_PUT("Request Details of Forthcoming Events")
CALL RW_NEWLINE
CALL RW_CHECKBOX("balance","Yes",0,0,"")
CALL RW_PUT("View the Balance of My Account")
CALL RW_NEWLINE
CALL RW_CHECKBOX("payment","Yes",0,0,"")
CALL RW_PUT("Pay for Recent Orders")
CALL RW_NEWLINES(2)

*Create the submit button
CALL RW_SUBMIT_BUTTON("Submit Details","")

*Complete the form
CALL RW_END_FORM

* Complete the page
CALL RW_END_PAGE

RETURN
SUBROUTINE RESPONSE2
*Display message acknowledging requested options to user submitting Form 6

* Include the RealWeb definitions

     INCLUDE #RW.INCLUDE.DEFS FROM /SYSFILES/REALWEB,BP

* Start the HTML page
* Display the text 'Response to Form' in the browser's title bar
CALL RW_START_HTML_PAGE("Response to Form", "", "", "", "")

CALL RW_PUT("Thankyou for your selections")
CALL RW_NEWLINE

*Get the value of "edchoice" from Form 6
CALL RW_GET_PARAM("edchoice",EDCHOICE)
*Get the value of "events" from Form 6
CALL RW_GET_PARAM("events",EVENTS)
*Get the value of "balance" from Form 6
CALL RW_GET_PARAM("balance",BALANCE)
*Get the value of "payment" from Form 6
CALL RW_GET_PARAM("payment",PAYMENT)


     IF EDCHOICE = "Yes" THEN
CALL RW_NEWLINE
CALL RW_PUT("The Editor's Choice will be dispatched immediately")

     END


     IF EVENTS = "Yes" THEN
CALL RW_NEWLINE
CALL RW_PUT("Details of forthcoming events will be sent to you immediately")

     END


     IF BALANCE = "Yes" THEN
CALL RW_NEWLINE
CALL RW_PUT("You are being transferred to the Accounts System. Your balance will be displayed shortly.")

     END


     IF PAYMENT = "Yes" THEN
CALL RW_NEWLINE
CALL RW_PUT("You are being transferred to the Accounts System for entry of credit card details")

     END

* Complete the page
CALL RW_END_PAGE

RETURN

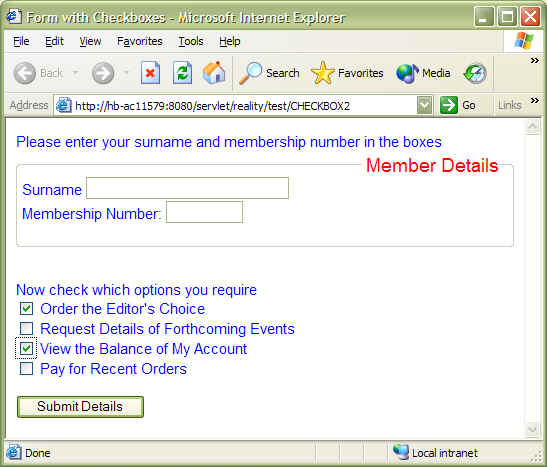

Subroutine result in browser

Subroutine result in browser on submission

Form Page

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<HTML>
<HEAD>
<META NAME="Generator" CONTENT="Reality">
<TITLE>Form with Checkboxes</TITLE>

<STYLE type="text/css">
<!-- @import url(/servlet/realityis/test/REALWEB-ITEMS/jstyles.css); -->
</STYLE>

</HEAD>
<BODY>
<FORM ACTION="RESPONSE2" NAME="FORM6" METHOD="POST">

Please enter your surname and membership number in the boxes
<BR>

<FIELDSET >
<LEGEND CLASS="legend" ALIGN="right">Member Details</LEGEND>


Surname
<INPUT NAME="NAME" SIZE="30" TYPE="TEXT">
<BR>

Membership Number:
<INPUT NAME="NAME" SIZE="9" TYPE="TEXT">
<BR>
<BR>
</FIELDSET>
<BR>
<BR>

Now check which options you require
<BR>
<INPUT TYPE=CHECKBOX NAME="edchoice" VALUE="Yes">

Order the Editor's Choice
<BR>
<INPUT TYPE=CHECKBOX NAME="events" VALUE="Yes">

Request Details of Forthcoming Events
<BR>
<INPUT TYPE=CHECKBOX NAME="balance" VALUE="Yes">

View the Balance of My Account
<BR>
<INPUT TYPE=CHECKBOX NAME="payment" VALUE="Yes">

Pay for Recent Orders
<BR>
<BR>
<INPUT TYPE="submit" VALUE="Submit Details">
</FORM>
</BODY>
</HTML>

Response Page

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<HTML>
<HEAD>
<META NAME="Generator" CONTENT="Reality">
<TITLE>Response to Form</TITLE>


</HEAD>
<BODY>

Thankyou for your selections
<BR>
<BR>

The Editor's Choice will be dispatched immediately
<BR>

You are being transferred to the Accounts System. Your balance will be displayed shortly.
</BODY>
</HTML>
