SUBROUTINE TABLE_S6
* Demonstrate using a table to lay out a form.

* Include the RealWeb definitions

     INCLUDE #RW.INCLUDE.DEFS FROM /SYSFILES/REALWEB,BP


     EQU AM TO CHAR(254)

* Start the HTML page.
CALL RW_START_HTML_PAGE("Table/Form Layout Example", "", "", "", "")


     TABLE = ""

* Create the form elements and put them into table cells.

     CELL1 = "Name:"

     aClass = ""

     aClass<2> = "RIGHT"        ;* Right align the cell contents.
CALL RWS_TABLE_HEADER(CELL1, aClass)

     CELL2 = ""
CALL RWA_EDIT_BOX(CELL2, "name", 32, "")
CALL RWS_TABLE_DATA(CELL2, "")

     ROW = CELL1 : CELL2
CALL RWS_TABLE_ROW(ROW, "")      ;* Construct the table row.

     TABLE = TABLE : ROW


     CELL1 = "Address:"

     aClass = ""

     aClass<2> = "RIGHT"        ;* Right align the cell contents.
CALL RWS_TABLE_HEADER(CELL1, aClass)

     CELL2 = ""
CALL RWA_EDIT_BOX(CELL2, "address", 32, "")
CALL RWS_TABLE_DATA(CELL2, "")

     ROW = CELL1 : CELL2
CALL RWS_TABLE_ROW(ROW, "")      ;* Construct the table row.

     TABLE = TABLE : ROW


     CELL1 = "Phone:"
CALL RWS_TABLE_HEADER(CELL1, aClass)

     CELL2 = ""
CALL RWA_EDIT_BOX(CELL2, "phone", 32, "")
CALL RWS_TABLE_DATA(CELL2, "")

     ROW = CELL1 : CELL2
CALL RWS_TABLE_ROW(ROW, "")      ;* Construct the table row.

     TABLE = TABLE : ROW


     CELL1 = "Preferences:"

     aClass = ""

     aClass<3> = "TOP"                ;* Put the cell contents at the top.
CALL RWS_TABLE_HEADER(CELL1, aClass)

     ROW = CELL1

* The next cell will contain an embedded table, containing
* four check boxes.

     TABLE2 = ""

     CELL1 = ""
CALL RWA_CHECKBOX(CELL1, "pref", "CR", 0, 4, "")

     CELL1 = CELL1 : "Crime and Thrillers"
CALL RWS_TABLE_DATA(CELL1, "")

     CELL2 = ""
CALL RWA_CHECKBOX(CELL2, "pref", "HI", 0, 4, "")

     CELL2 = CELL2 : "Historical"
CALL RWS_TABLE_DATA(CELL2, "")

     ROW2 = CELL1 : CELL2
CALL RWS_TABLE_ROW(ROW2, "")      ;* Construct the table row.

     TABLE2 = TABLE2 : ROW2


     CELL1 = ""
CALL RWA_CHECKBOX(CELL1, "pref", "CL", 0, 4, "")

     CELL1 = CELL1 : "Classics"
CALL RWS_TABLE_DATA(CELL1, "")

     CELL2 = ""
CALL RWA_CHECKBOX(CELL2, "pref", "SF", 0, 4, "")

     CELL2 = CELL2 : "Science Fiction"
CALL RWS_TABLE_DATA(CELL2, "")

     ROW2 = CELL1 : CELL2
CALL RWS_TABLE_ROW(ROW2, "")      ;* Construct the table row.

     TABLE2 = TABLE2 : ROW2

* Create the embedded table.
CALL RWS_TABLE(TABLE2, "")
* Put it in a table cell.
CALL RWS_TABLE_DATA(TABLE2, "")

     ROW = ROW : TABLE2
* Construct the table row.
CALL RWS_TABLE_ROW(ROW, "")      ;* Construct the table row.

     TABLE = TABLE : ROW


     ROW = ""
CALL RWA_SUBMIT_BUTTON(ROW, "Register", "")

     aClass = ""

     aClass<2> = "CENTER"       ;* Centre the cell contents.

     aClass<4> = 2              ;* Span two columns.
CALL RWS_TABLE_DATA(ROW, aClass)
CALL RWS_TABLE_ROW(ROW, "")      ;* Construct the table row.

     TABLE = TABLE : ROW

* Construct the table.
CALL RWS_TABLE(TABLE, "")

* Construct the form.
CALL RWS_FORM(TABLE, "THANKS", "Details", "")

* Output the HTML.
CALL RW_PUT(TABLE)

* Complete the page.
CALL RW_END_PAGE

RETURN

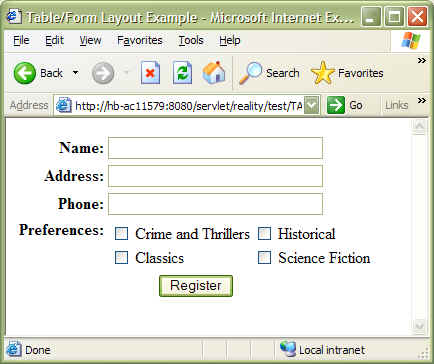

Subroutine result in browser

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<HTML>
<HEAD>
<META NAME="Generator" CONTENT="Reality">
<TITLE>Table/Form Layout Example</TITLE>


</HEAD>
<BODY>
<FORM ACTION="THANKS" NAME="Details" METHOD="POST"><TABLE>
<TR>
<TH ALIGN="RIGHT">Name:</TH>
<TD>
<INPUT NAME="name" SIZE="32" TYPE="TEXT">
</TD>
</TR>
<TR>
<TH ALIGN="RIGHT">Address:</TH>
<TD>
<INPUT NAME="address" SIZE="32" TYPE="TEXT">
</TD>
</TR>
<TR>
<TH ALIGN="RIGHT">Phone:</TH>
<TD>
<INPUT NAME="phone" SIZE="32" TYPE="TEXT">
</TD>
</TR>
<TR>
<TH VALIGN="TOP">Preferences:</TH>
<TD>
<TABLE>
<TR>
<TD>
<INPUT TYPE=CHECKBOX NAME="pref" VALUE="CR" TABINDEX="4">

                  Crime and Thrillers
</TD>
<TD>
<INPUT TYPE=CHECKBOX NAME="pref" VALUE="HI" TABINDEX="4">

                  Historical
</TD>
</TR>
<TR>
<TD>
<INPUT TYPE=CHECKBOX NAME="pref" VALUE="CL" TABINDEX="4">

                  Classics
</TD>
<TD>
<INPUT TYPE=CHECKBOX NAME="pref" VALUE="SF" TABINDEX="4">

                  Science Fiction
</TD>
</TR>
</TABLE>
</TD>
</TR>
<TR>
<TD ALIGN="CENTER" COLSPAN="2">
<INPUT TYPE="submit" VALUE="Register">
</TD>
</TR>
</TABLE>

</FORM>

</BODY>
</HTML>
