SUBROUTINE TABLE_S5
* Create a table organised into horizontal and vertical sections.
* This demonstrates the use of most of the table functions.

* Include the RealWeb definitions.

     INCLUDE #RW.INCLUDE.DEFS FROM /SYSFILES/REALWEB,BP


     EQU LF TO CHAR(10)

     EQU TAB TO CHAR(9)

     EQU AM TO CHAR(254)

     EQU VM TO CHAR(253)

* Get the URL of the Reality item server.

     STYLESHEET = ""
CALL RW_GET_PARAM("__isurl", STYLESHEET)
* Specify the location of the stylesheet.

     STYLESHEET = STYLESHEET : "/REALWEB-ITEMS/blue.css"

* Start the HTML page.
CALL RW_START_HTML_PAGE("Complex RWS_Table Example", "", STYLESHEET, "", "")

* Create a caption to appear below the table.

     TABLE = "Cereal preference, by Gender"

     aClass = ""

     aClass<2> = "bottom"
CALL RWS_TABLE_CAPTION(TABLE, aClass)

* Create groups of columns.
CALL RWA_TABLE_COLGROUP(TABLE, 1, "", "")
CALL RWA_TABLE_COLGROUP(TABLE, 1, "", "")
CALL RWA_TABLE_COLGROUP(TABLE, 2, "", "")

* Build up the data to go in the table, by adding the cells to a
* row one at a time. When complete, add the row to the section.
* When the section is complete, add it to the table.

* Start with a head section containing two rows.
* The top left-hand corner of the table will contain an empty cell
* spanning two columns and two rows.

     CELL = ""

     aClass = ""

     aClass<4> = 2                         ;* Span two columns.

     aClass<5> = 2                         ;* Span two rows.
CALL RWS_TABLE_HEADER(CELL, aClass)   ;* Create the cell.

     ROW = CELL                            ;* Add it to the row.

* The next cell will span two columns of the top row.

     CELL = "Cereal"

     aClass = ""

     aClass<4> = 2                         ;* Span two columns.
CALL RWS_TABLE_HEADER(CELL, aClass)   ;* Create the cell.

     ROW = ROW : CELL                      ;* Add it to the row.

CALL RWS_TABLE_ROW(ROW, "")           ;* Create the table row.

     SECT = ROW                            ;* Add it to the head section.

* The second row will contain two header cells.

     CELL = "Choco flakes"
CALL RWS_TABLE_HEADER(CELL, "")

     ROW = CELL

     CELL = "Bran rings"
CALL RWS_TABLE_HEADER(CELL, "")

     ROW = ROW : CELL                      ;* Add them to the row.

CALL RWS_TABLE_ROW(ROW, "")           ;* Create the table row.

     SECT = SECT : ROW                     ;* Add it to the head section.

CALL RWS_TABLE_HEAD(SECT, "")         ;* Create the head section.

     TABLE = TABLE : SECT                  ;* Add it to the table.

* The body of the table will be divided into to two sections, each
* containing two rows.
* The first cell will span two rows.

     CELL = "Boys"

     aClass = ""

     aClass<5> = 2                         ;* Span two rows.
CALL RWS_TABLE_HEADER(CELL, aClass)

     ROW = CELL : LF
* The rest of the row will contain a header and two data cells.

     CELL = "Under 11"
CALL RWS_TABLE_HEADER(CELL, "")

     ROW = ROW : CELL : LF

     CELL = "92%"
CALL RWS_TABLE_DATA(CELL, "")

     ROW = ROW : CELL : LF

     CELL = "8%"
CALL RWS_TABLE_DATA(CELL, "")

     ROW = ROW : CELL

CALL RWS_TABLE_ROW(ROW, AM:"CENTER")  ;* Create the table row.

     SECT = ROW                            ;* Add it to the body section.

* The second row will also contain a header and two data cells.

     CELL = "11 and over"
CALL RWS_TABLE_HEADER(CELL, "")

     ROW = CELL : LF

     CELL = "87%"
CALL RWS_TABLE_DATA(CELL, "")

     ROW = ROW : CELL : LF

     CELL = "13%"
CALL RWS_TABLE_DATA(CELL, "")

     ROW = ROW : CELL : LF

CALL RWS_TABLE_ROW(ROW, AM:"CENTER")  ;* Create the table row.

     SECT = SECT : ROW : LF                ;* Add it to the body section.

CALL RWS_TABLE_BODY(SECT, "")         ;* Create the body section.

     TABLE = TABLE : SECT : LF             ;* Add it to the table.

* The second body section will have the same structure as the first.

     CELL = "Girls"

     aClass = ""

     aClass<5> = 2                         ;* Span two rows.
CALL RWS_TABLE_HEADER(CELL, aClass)

     ROW = CELL : LF

     CELL = "Under 11"
CALL RWS_TABLE_HEADER(CELL, "")

     ROW = ROW : CELL : LF

     CELL = "74%"
CALL RWS_TABLE_DATA(CELL, "")

     ROW = ROW : CELL : LF

     CELL = "26%"
CALL RWS_TABLE_DATA(CELL, "")

     ROW = ROW : CELL

CALL RWS_TABLE_ROW(ROW, AM:"CENTER")  ;* Create the table row.

     SECT = ROW : LF                       ;* Add it to the body section.


     CELL = "11 and over"
CALL RWS_TABLE_HEADER(CELL, "")

     ROW = CELL : LF

     CELL = "37%"
CALL RWS_TABLE_DATA(CELL, "")

     ROW = ROW : CELL : LF

     CELL = "63%"
CALL RWS_TABLE_DATA(CELL, "")

     ROW = ROW : CELL

CALL RWS_TABLE_ROW(ROW, AM:"CENTER")  ;* Create the table row.

     SECT = SECT : ROW : LF                ;* Add it to the body section.

CALL RWS_TABLE_BODY(SECT, "")         ;* Create the body section.

     TABLE = TABLE : SECT : LF             ;* Add it to the table.

* The foot section will contain a single row containing one cell
* centred across all four columns.

     CELL = "Excludes children under 5."

     aClass = ""

     aClass<2> = "CENTER"                  ;* Centre the text.

     aClass<4> = 4                         ;* Span four columns.
CALL RWS_TABLE_DATA(CELL, aClass)
CALL RWS_TABLE_ROW(CELL, "")          ;* Create the table row.
CALL RWS_TABLE_FOOT(CELL, "")         ;* Create the foot section.

     TABLE = TABLE : CELL : LF             ;* Add it to the table.

* Give the table a border.

     aClass = ""

     aClass<2> = "border"
* Draw rules between the sections.

     aClass<3> = "GROUPS"
* Set the cell spacing and padding.
* Give the table a background colour.

     aClass<4> = "cellspacing=0 cellpadding=5 bgcolor=lightsteelblue"

* Create the table.
CALL RWS_TABLE(TABLE, aClass)

* Output the TABLE.
CALL RW_PUT(TABLE)

* Complete the page.
CALL RW_END_PAGE

RETURN

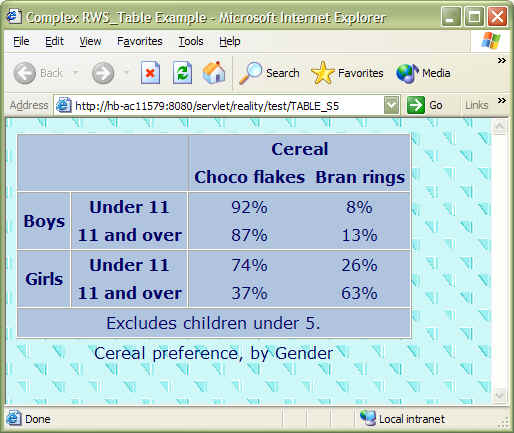

Result

HTML

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<HTML>
<HEAD>
<META NAME="Generator" CONTENT="Reality">
<TITLE>Complex RWS_Table Example</TITLE>

<STYLE type="text/css">
<!-- @import url(/servlet/realityis/test/REALWEB-ITEMS/blue.css); -->
</STYLE>

</HEAD>
<BODY>
<TABLE BORDER="border" RULES="GROUPS" cellspacing=0 cellpadding=5 bgcolor=lightsteelblue>
<CAPTION ALIGN="bottom">Cereal preference, by Gender</CAPTION>
<COLGROUP SPAN="1">
<COLGROUP SPAN="1">
<COLGROUP SPAN="2">
<THEAD>
<TR>
<TH COLSPAN="2" ROWSPAN="2"></TH>
<TH COLSPAN="2">Cereal</TH>
</TR>
<TR>
<TH>Choco flakes</TH>
<TH>Bran rings</TH>
</TR>
</THEAD>
<TBODY>
<TR ALIGN="CENTER">
<TH ROWSPAN="2">Boys</TH>

<TH>Under 11</TH>

<TD>

            92%
</TD>

<TD>

            8%
</TD>
</TR>
<TR ALIGN="CENTER">
<TH>11 and over</TH>

<TD>

            87%
</TD>

<TD>

            13%
</TD>

</TR>


</TBODY>

<TBODY>
<TR ALIGN="CENTER">
<TH ROWSPAN="2">Girls</TH>

<TH>Under 11</TH>

<TD>

            74%
</TD>

<TD>

            26%
</TD>
</TR>

<TR ALIGN="CENTER">
<TH>11 and over</TH>

<TD>

            37%
</TD>

<TD>

            63%
</TD>
</TR>


</TBODY>

<TFOOT>
<TR>
<TD ALIGN="CENTER" COLSPAN="4">

            Excludes children under 5.
</TD>
</TR>
</TFOOT>

</TABLE>

</BODY>
</HTML>
