RWA_BUTTON Example (RealWeb)

SUBROUTINE BUTTONA
*Display a simple form, with one set of fields and a Help button

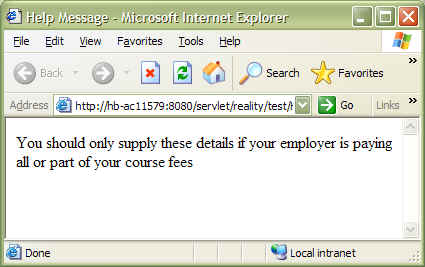

*When clicked, the button calls a Javascript function to open a new window
*containing some help text

*Include the RealWeb definitions
INCLUDE #RW.INCLUDE.DEFS FROM /SYSFILES/REALWEB,BP
EQU LF TO CHAR(10)

* Get the URL of the Reality item server
STYLESHEET = ""
CALL RW_GET_PARAM("__isurl", STYLESHEET)
* Specify the location of the stylesheet
STYLESHEET = STYLESHEET : "/REALWEB-ITEMS/jstyles.css"

* Start the HTML page
CALL RW_START_HTML_PAGE("BUTTON", "", STYLESHEET, "", "")
* Get the JavaScript code
HELP = ""
CALL RWA_INSERT_ITEM(HELP, "REALWEB-ITEMS", "help.js")
* Put the code in the JavaScript buffer
CALL RW_PUT_EX(HELP, RWD_JAVASCRIPT)

* Start the HTML form, specifying that the subroutine THANKS2
* should be run when the form is submitted
CALL RW_START_HTML_FORM("THANKS2", "FORM7", "")

LEG_CLASS="legend"
*Start the fieldset
CALL RW_START_FIELDSET("")
BUF1="Details of Previous Employment"
CALL RWS_LEGEND(BUF1,LEG_CLASS)
CALL RW_PUT(BUF1)

* Create the editboxes
CALL RW_START_PARA("", "")
CALL RW_PUT(" Employer's Name:     ")
CALL RW_EDIT_BOX("NAME", 30,"")
CALL RW_END_PARA
CALL RW_START_PARA("", "")
CALL RW_PUT("Employer's Address: ")
CALL RW_EDIT_BOX("ADD1", 30,"")
CALL RW_END_PARA
CALL RW_START_PARA("", "")
CALL RW_PUT("         ")
CALL RW_PUT("     ")
CALL RW_PUT("          ")
CALL RW_PUT("        ")
CALL RW_EDIT_BOX("ADD2", 30,"")
CALL RW_END_PARA
CALL RW_START_PARA("", "")
CALL RW_PUT("         ")
CALL RW_PUT("       ")
CALL RW_PUT("        ")
CALL RW_PUT("        ")
CALL RW_EDIT_BOX("ADD3", 30,"")
CALL RW_END_PARA
CALL RW_START_PARA("","")
CALL RW_PUT("Postcode:       ")
CALL RW_PUT("          ")
CALL RW_EDIT_BOX("PCODE", 7,"")
CALL RW_END_PARA

*Create the help button
CALL RWA_BUTTON(BUF2,"Info","HELP","return help();","")
CALL RW_PUT(BUF2)
CALL RW_END_FIELDSET

*Create the submit button
CALL RW_SUBMIT_BUTTON("Submit","")

*Complete the form
CALL RW_END_FORM

* Complete the page
CALL RW_END_PAGE
RETURN

HTML

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<HTML>
<HEAD>
<META NAME="Generator" CONTENT="Reality">
<TITLE>BUTTON</TITLE>

<STYLE type="text/css">
<!-- @import url(/servlet/realityis/test/REALWEB-ITEMS/jstyles.css); -->
</STYLE>
<SCRIPT LANGUAGE="JavaScript" TYPE="text/javascript">

function help() {

	/* Open a new window and call another RealWeb subroutine which displays a help message*/


     NewWindow = window.open("HELPINFO");

}
</SCRIPT>

</HEAD>
<BODY>
<FORM ACTION="THANKS2" NAME="FORM7" METHOD="POST">

<FIELDSET >
<LEGEND CLASS="legend">Details of Previous Employment</LEGEND>

<P>

 Employer's Name:&nbsp;&nbsp;&nbsp;&nbsp;
<INPUT NAME="NAME" SIZE="30" TYPE="TEXT">
</P>
<P>

Employer's Address:
<INPUT NAME="ADD1" SIZE="30" TYPE="TEXT">
</P>
<P>

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;
<INPUT NAME="ADD2" SIZE="30" TYPE="TEXT">
</P>
<P>

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;
<INPUT NAME="ADD3" SIZE="30" TYPE="TEXT">
</P>
<P>

Postcode:&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;
<INPUT NAME="PCODE" SIZE="7" TYPE="TEXT">
</P>
<INPUT TYPE=BUTTON NAME="Info" VALUE="HELP" OnClick="return help();">

</FIELDSET>
<INPUT TYPE="submit" VALUE="Submit">
</FORM>
</BODY>
</HTML>
